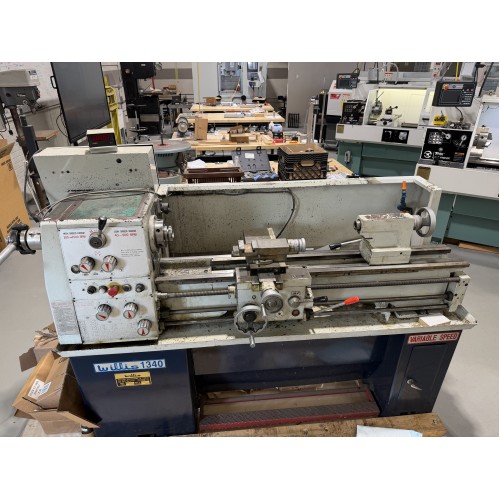

WILLIS 13" x 40"cc PRECISION ENGINE LATHE WITH 3-JAW CHUCK AND 5C LEVER TYPE COLLET CLOSER MFG. IN TAIWAN

3 HP MAIN MOTOR

D1-4 CAMLOCK SPINDLE TYPE

INCH/METRIC

The 13" Swing Series Geared Head Engine Lathe is built for precision and designed to handle demanding tasks with accuracy and reliability. Equipped with a D1-4 Camlock spindle nose and a 3HP motor, it offers smooth operation at speeds from 105 to 2000 RPM, with options to increase speed capabilities. With a swing over bed of 330mm and a maximum distance between centers of 1000mm, this lathe accommodates various part sizes, making it suitable for both production and repair work.The induction-hardened, precision-ground bed ensures lasting accuracy, while the optional universal gearbox expands threading options for metric, imperial, M.P., and D.P. standards. Built for tough industrial use, this lathe provides consistent, high-quality performance.

D1-4 Camlock Spindle Nose: Ensures quick and secure chuck changes, boosting operational efficiency for complex machining tasks.

3HP (2.25 kW) Spindle Motor: Provides powerful, consistent performance, assisting with precise cuts and smooth operation during heavy-duty work.

8-Step Spindle Speed (105-2000 RPM): Adjustable speed range for precise machining operations. Upgrade options include:

2-Speed Motor Drive: Expands spindle speeds to 16 steps, from 53 to 2000 RPM.

Variable-Speed Drive: Enables fine-tuning with a range from 40 to 2500 RPM in two variable ranges.

Swing Over Bed (330mm): Allows for machining larger parts, providing flexibility for various job sizes.

Distance Between Centers: Available in 750mm and 1000mm configurations, offering versatility for different workspace and part dimensions.

Hardened and Ground Headstock Gears: Ensures smooth, durable performance under continuous use, maintaining precision over time.

Induction-Hardened Bed: Resists wear and tear for long-term accuracy and durability for heavy-duty use.
