AML Stock #003002

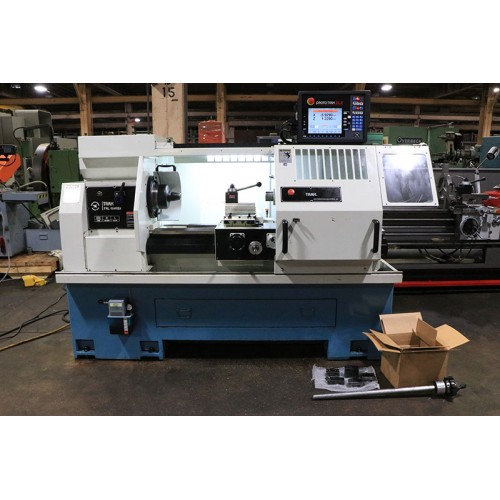

18" X 40" TRAK 2-AXIS CNC/MANUAL FLAT BED LATHE MODEL TRL 1840SX

S/N: 062CQJ14583, NEW: 2006

SPECIFICATIONS:

HEIGHT OF CENTERS .......................... 9"

SWING OVER BED ............................. 18-1/2"

SWING OVER CROSS SLIDE ..................... 9"

SWING OVER SADDLE WINGS .................... 17"

MAX DISTANCE BETWEEN CENTERS ............... 40.2"

CROSS SLIDE TRAVEL (X) ..................... 13"

LONGITUDINAL TRAVEL (Z) .................... 40"

SPINDLE TAPER, CAMLOCK, SIZE ............... D1-6

SPINDLE SPEED RANGE (3), INF VAR ........... 50 - 2500 RPM

SPINDLE BORE ............................... 2.36"

TAPER IN HEADSTOCK SPINDLE ................. #6 MT

TAPER IN HEADSTOCK SPINDLE REDUCTION SLEEVE. #4 MT

TAILSTOCK QUILL TRAVEL ..................... 6.3"

TAILSTOCK QUILL DIAMETER ................... 2.95"

TAILSTOCK QUILL TAPER HOLE ................. #5 MT

APPROX WEIGHT .............................. 4,500 LBS

APPROX DIMENSIONS .......................... 94" X 53" X 70"

EQUIPPED WITH:

- SOUTHWESTERN INDUSTRIES-PROTOTRAK MODEL: SLX CNC CONTROL

- TWO AXIS DIGITAL READOUT DURING MANUAL OPERATION

- CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS

- SERVO MOTORS & GROUND BALLSCREWS

- AC SPINDLE DRIVE

- ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE

- JOGSTICK FOR CONVENIENT JOG AT RAPID TRAVELS

- UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS

- ALORIS QUICK CHANGE TOOLPOST

- ROYAL 5C LEVER-TYPE COLLET CLOSER & NOSE PIECE

- 8" 3-JAW CHUCK

- HARDENED & GROUND BED WAYS

- AUTOMATIC LUBRICATION SYSTEM

- COOLANT SYSTEM

- 10 HORSE POWER 3/60/230 VOLT SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NJ
