AML Stock #003075

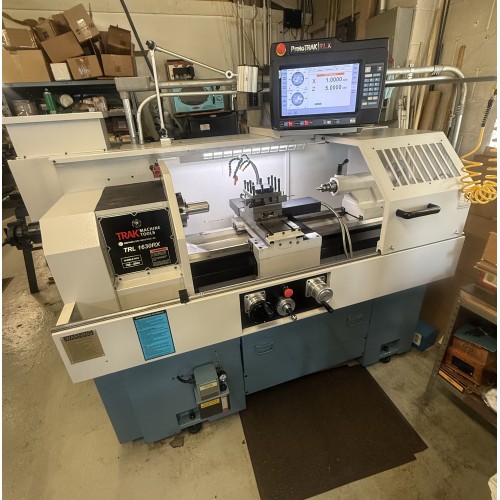

16" X 30" TRAK 2-AXIS CNC/MANUAL FLAT BED LATHE MODEL TRL 1630RX
New in 2019 with minimal use. Excellent condition! Inspect in plant/under power. Northeast location
Height of centers- 8”
Distance between centers- 30”
Swing over the bed- 16”
Swing over the saddle wings- 16”
Swing over cross slide- 8.6”
Cross slide travel- 8.5”
X axis rapids- 200 I.P.M.
Z axis rapids- 400 I.P.M.
Bed width- 12.6”
Spindle nose- D1-6
Spindle through hole- 2.12”
Spindle speeds-150 -2,500 R.P.M.
Tailstock quill travel- 5.75”
Tailstock quill diameter- 2.36”
Tailstock quill taper-#4 Morse
Equipped With
SWI TRAK RLX CNC Touch Screen Control- advanced features, Network, Electronic handwheels
5C Lever type collet closer
4-Position Turret
Tailstock
Automatic lubrication system
7.5 H.P. Spindle motor
Machine is wired for 208 volt / 3 phase / 60 H.Z.
Machine weight- 3,450 Lbs.
Machine dimensions- 82” x 45” x 72”
CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NORTHEAST
TRAK MACHINE TOOLS MODEL TRL-1630RX TOOLROOM LATHE WITH 5C COLLET CLOSER 4-POSITION TURRET AND TAILSTOCK 2019 EXCELLENT CONDITION
- Brand: TRAK MACHINE TOOLS
- Product Code: 003075
- Availability: In Stock
-
$35,000.00
- Ex Tax: $35,000.00
Tags: TRAK MACHINE TOOLS MODEL TRL-1630RX TOOLROOM LATHE WITH 5C COLLET CLOSER 4-POSITION TURRET, TAILSTOCK, 2019 EXCELLENT CONDITION, FRYER EASY TURN, PROTOTRAK 1840SX, BRIDGEPORT EZ PATH
