TRAK MACHINE TOOLS MODEL TRL1440EX CNC TOOLROOM LATHE WITH TOOLING, 2014 SOUTHWESTERN INDUSTRIES, FRYER TEACH LATHE, FRYER EASY TURN, PROTOTRAK

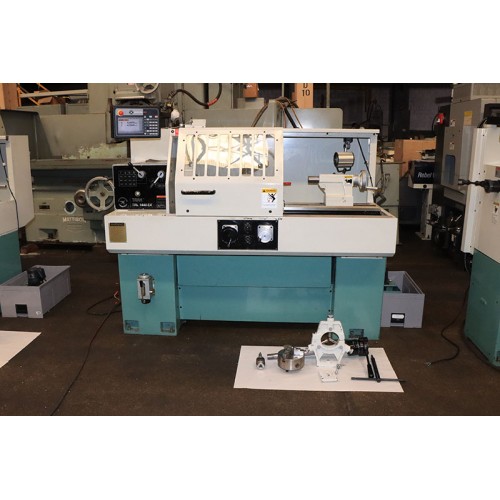

14" x 40" TRAK CNC TOOLROOM LATHE W/MANUAL HANDWHEELS, MODEL: TRL-1440ELX (SEVERAL AVAILABLE)

S/N:143DH935,YEAR: 2014

SPECIFICATIONS:

SWING OVER BED WAYS.................... 14"

SWING OVER SADDLE WINGS................ 14"

SWING OVER CROSS SLIDE................. 7.0"

DISTANCE BETWEEN CENTERS............... 40"

CROSS SLIDE TRAVEL..................... 8"

SPINDLE NOSE CAMLOCK................... D1-4"

SPINDLE THROUGH HOLE................... 1.56"

SPINDLE SPEED RANGE(12)................ 60 - 2400 RPM

BED WIDTH.............................. 8.1"

TAILSTOCK SPINDLE TRAVEL............... 5"

TAILSTOCK SPINDLE DIAMETER............. 1.575"

TAILSTOCK SPINDLE TAPER................ #3MT

APPROXIMATE DIMENSIONS................. 73"L x 44"W x 57"H

APPROXIMATE WEIGHT..................... 2,000 LBS.

EQUIPPED WITH:

 - PROTO-TRAK  MODEL: ELX CONTROL

 - CONVERSATIONAL & GRAPHICS, CANNED CYCLES,

 - TURNS PARTS MANUALLY OR AUTOMATICALLY

 - THREADING

 - PRECISION GROUND BALLSCREWS IN THE SADDLE & CROSS SLIDE

 - ELECTRONIC HANDWHEELS & JOYSTICK

 - HARDENED & GROUND BED

 - 3-JAW CHUCK

 - 5C LEVER TYPE COLLET CLOSER & NOSE PIECE

 - STEADY REST

 - 5 HORSE POWER SPINDLE DRIVE

 - COOLANT SYSTEM REMOVABLE CHIP PAN

 - SPLASH GUARD
