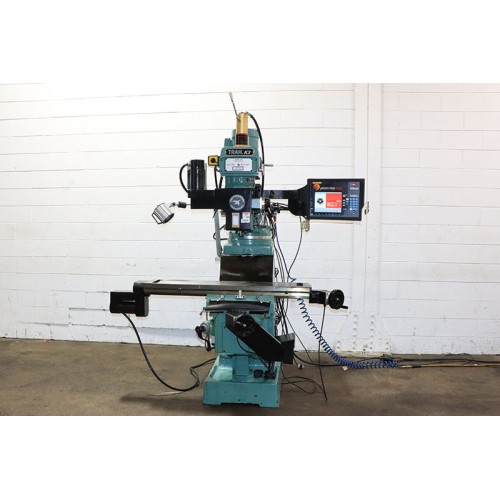

TRAK MACHINE TOOLS MODEL K3SX-3 CNC VERTICAL MILLING MACHINE WITH PROTOTRAK SX 3-AXIS CNC CONTROL POWER DRAWBAR, EXCELLENT CONDITION

AML Stock #003092

SOUTHWESTERN INDUSTRIES / PROTO-TRAK 3- AXIS CNC VERTICAL MILL MODEL K3SX-3

 S/N: 061CN14200, NEW: 2006

SPECIFICATIONS:

TABLE WORKING SURFACE ............... 10" X 50"

TRAVELS: LONGITUDINAL (X) ........... 32"

         CROSS (Y) .................. 16"

         VERTICAL, KNEE ............. 16"

         QUILL (Z) .................. 4.9"

QUILL DIAMETER ...................... 3.375"

MAXIMUM UNIFORM TABLE LOAD .......... 750 LBS.

RAM TRAVEL .......................... 15"

HEAD TILT, LEFT AND RIGHT ........... 90 DEGREES

HEAD TILT, FRONT TO REAR, EACH WAY .. 45 DEGREES

SPINDLE SPEEDS INFINITELY VARIABLE:

      LOW RANGE ..................... 60 - 500 RPM

      HIGH RANGE .................... 500 - 4,200 RPM

SPINDLE TAPER ....................... R-8

MAXIMUM COLLET CAPACITY ............. 3/4"

MAXIMUM RAPID FEED RATE ............. 100 IPM

APPROX DIMENSIONS ................... 70"W X 62"D  X 91"H

APPROX WEIGHT ....................... 2850 LBS

EQUIPPED WITH

- PROTOTRAK MODEL: SMX 3 THREE-AXIS (X,Y & Z) CNC CONTROL

  (THREE-AXIS DIGITAL DISPLAY IN MANUAL MODE)

  ADVANCED FEATURES, NETWORKING, TRAKING

- LCD SCREEN

- BALL SCREWS & SERVO DRIVES FOR EACH PROGRAMMABLE AXIS

- TRAKING/ELECTRONIC HANDWHEELS OPTION

- HARDENED & GROUND BOX WAYS ON SADDLE

- HARDENED & GROUND DOVETAIL WAYS ON X-AXIS LONGITUDINAL & KNEE

- TORQUE-RITE AIR ACTUATED POWER DRAW BAR

- AUTOMATIC LUBRICATION SYSTEM

- 3 HORSE POWER SPINDLE DRIVE MOTOR AND ELECTRICAL CONTROLS

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
