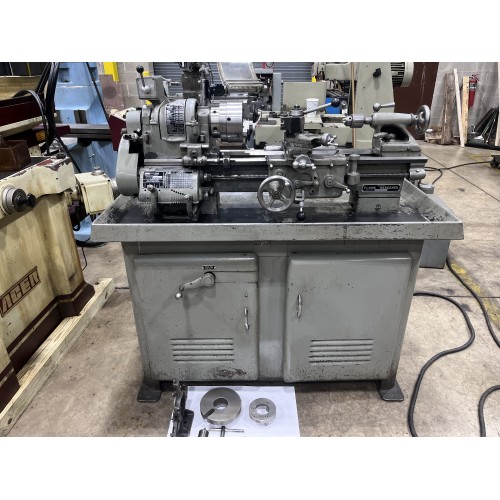

SOUTH BEND 10" x 19"cc PRECISION ENGINE LATHE MODEL HEAVY 10 FULLY TOOLED ON METAL CABINET BASE

AML Stock #003087

10” x 20” South Bend “Heavy Ten” Engine Lathe, Cat. # CL -187 ZB, 3-1/2’Bed S/N 21720R

Machine Description:

Swing…10”
Swing over Slide…5.75”
Center Distance…19”
Spindle Bore…1-3/8”
1 HP, 220 Volt, 3 Phase
Mount…D1-4 Camlock Spindle Type
Speeds (12)…55 - 1400 RPM
Threads 4 – 480 TPI
Feeds .0007 - .0836IPR
Tail Stock taper…2 MT
Tail Stock Travel…2-1/8”

Equipped With

6” Buck Adjust-Tru 3-Jaw Chuck
Aloris AXA Tool Post with 2 Holders

7” Drive Plate

Back Plate
Steady Rest
Drill Chuck
Live Center
Thread Dial

Hard ways

Factory Cabinet

Micrometer Stop

Excellent Condition, Ways are like glass!

Call Marc @ (732) 390-0006 To Inspect Under Power in Lebanon, NJ
