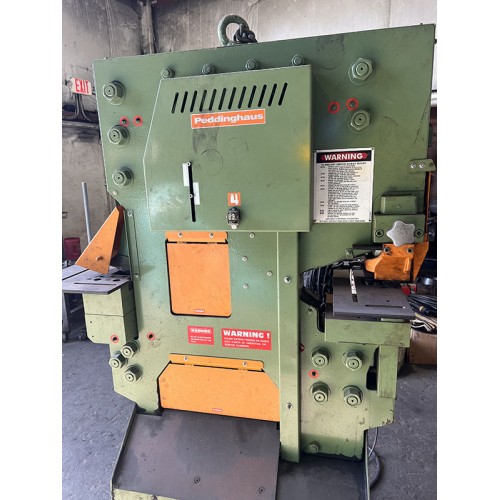

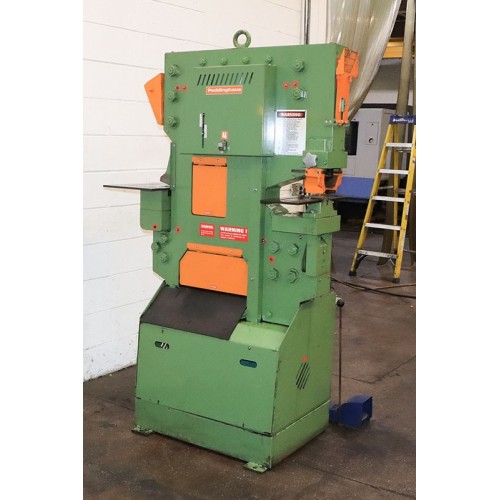

PEDDINGHAUS 100 TON HYDRAULIC IRONWORKER MODEL PEDDIWORKER 1, MFG. 2009

AML Stock #003032

100 TON PEDDINGHAUS HYDRAULIC IRONWORKER MODEL PEDDIWORKER 1

S/N 4090023009004, NEW 2009

Punching:

Maximum punch capacity ........ 100 TONS

Depth of throat ............... 10"

Working height ................ 46-1/4"

Stroke, variable .............. 3/8" to 1-5/8"

Speed at 3/4" stroke .......... 26 S.P.M.

Standard punch diameter ....... 1-1/4" in 7/8"

Shearing:

Angles at 90 degrees .......... 5" x 3/8"

Angles at 45 degrees .......... 5" x 1/2"

Rounds ........................ 1-5/8"

Squares ....................... 1-5/8"

Working Height ................ 47-1/4"

Flat Shear .................... 16" x 3/4"

Length of Cut ................. 16-3/4"

Working Height ................ 31-1/2"

Notching:

Flat Bar ...................... 1/2"

Angle Iron .................... 3" x 3/8"

Channels in Flange ............ 3" - 5"

I-Beams in Flange ............. 3" - 6"

Working Height ................ 46-1/4"

Width & Depth ................. 2" x 2-3/4"

Equipped with:

- 5.5 HP Motor

- 12 Gallon Reservoir

- Hydraulic design with infinitely variable stroke and stroke position setting

- Material support table with gauge stops on the flat shear station

- Quick-change punching attachment

- Square notcher with material support table on shear end

- Dual voltage (230-460) electrics

- Foot Pedal

Approximate Weight: 2,700 Lbs.

Approximate Dimensions: 48" Long x 27" Wide x 76" High

Call Marc @ (732) 390-0006 to inspect under power in NJ
