TRAK 3-AXIS CNC BED MILL MODEL DPMSX3 2008 WITH 10" x 50" TABLE NEW 2006

AML Stock #003000

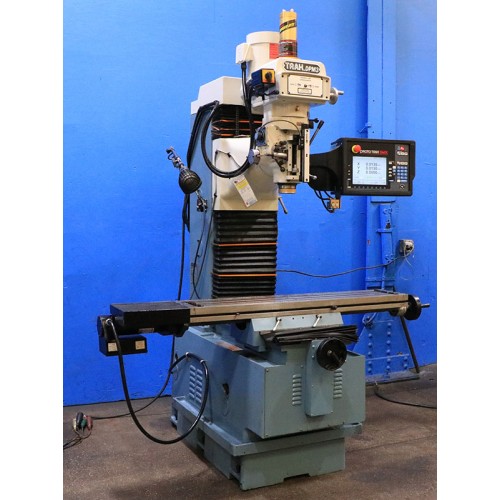

TRAK 3-AXIS CNC BED MILL w/HAND WHEELS MODEL DPMS3

S/N: 063CF14617,  NEW: 2006

SPECIFICATIONS:

TABLE SIZE ........................ 10" x 50"

TABLE TRAVEL (X) .................. 31"

SADDLE TRAVEL (Y) ................. 17"

VERTICAL HEAD TRAVEL (Z) .......... 23.5"

QUILL TRAVEL ...................... 5"

SPINDLE TAPER ..................... #40 NST

SPINDLE NOSE TO TABLE ............. 0 - 24"

SPINDLE CENTER TO COLUMN FACE ..... 17.3"

HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES

SPINDLE SPEED RANGE ............... 70 - 3950 RPM

QUILL FEEDS (3) ................... .002, .004, .006 IPR

MAXIMUM WORKPIECE WEIGHT .......... 1,320 LBS

APPROX DIMENSIONS ................. 68"W x 64"D x 95"H

MACHINE WEIGHT .................... 4,100 LBS

EQUIPPED WITH:

SOUTHWESTERN INDUSTRIES PROTO-TRAK SMX THREE AXIS CONTROL

    THREE-AXIS SIMULTANEOUS INTERPOLATION INCLUDING

    HELICAL, CANNED CYCLES, GRAPHICS & MUCH MORE

    IN MANUAL MODE 3-AXIS DRO, ETHERNET CARD,

    RS232 PORT, ADVANCED FEATUES & NETWORK OPTIONS

QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN NOT QUILL)

SQUARE BOX WAYS - HARDENED & GROUND

PRECISION BALL SCREWS

TORQUE-RITE POWER DRAW BAR

COOLANT SYSTEM

AUTOMATIC LUBRICATION SYSTEM

BELOWS WAY COVERS

5 HORSE POWER SPINDLE MOTOR

TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL

PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
