MORRISON KEYSEATER MODEL K 1 1/4" CAPACITY MFG. IN USA 1987 EXCELLENT CONDITION

AML Stock #003004

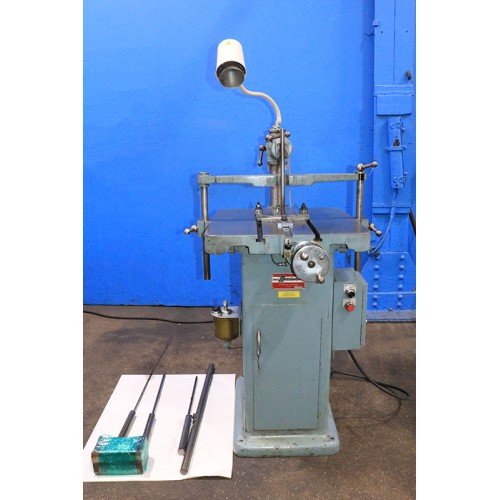

1-1/4" D.C. MORRISON MECHANICAL KEYSEATER MODEL K

S/N: K874474,  NEW: 1987

SPECIFICATIONS:

CUTS KEYWAYS .................... 1/16" TO 1-1/4" WIDE

MAXIMUM LENGTH OF CUT ........... 9"

LENGTH OF STROKE: ............... 3", 4-1/2", 6", 7-1/2", 9"

STROKES PER MINUTE .............. 34

FEEDS (3) ....................... .002", .004", .006"

LARGEST DIAMETER CUTTER BAR ..... 1-1/4"

DISTANCE FROM 1"

    CUTTER TO COLUMN ............ 16-1/4"

MAXIMUM DISTANCE

    UNDER STANDARD CLAMPS ....... 14"

DISTANCE BETWEEN CLAMPS ......... 25-1/2"

TABLE SIZE ...................... 24" X 27"

APPROXIMATE WEIGHT .............. 1,150 LBS.

EQUIPPED WITH:

- AUTOMATIC TABLE FEED AND STOP WITH TWO T-SLOTS

- CENTERING VEE

- SWINGING CLAMP BAR

- THREE CUTTER BARS & MULTIPLE INSERTS

- BIJUR ONE-SHOT LUBRICATION SYSTEM

- 2 HORSE POWER DRIVE MOTOR W/ START, STOP & JOG

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
