AML Stock #003082

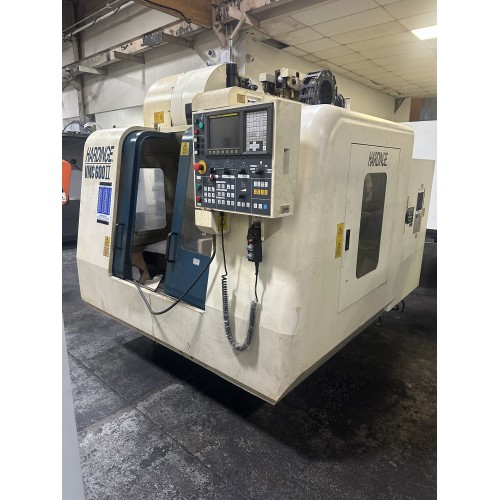

HARDINGE 4-AXIS VERTICAL MACHINING CENTER MODEL VMC600-II

S/N #NVA-849, NEW: 2005

SPECIFICATIONS:

X-AXIS TRAVEL........................... 23.62" / 600mm

Y-AXIS TRAVEL........................... 20.08" / 510mm

Z-AXIS TRAVEL........................... 20.08" / 510mm

SPINDLE NOSE TO TABLE TOP............... 6.1" TO 26.1"

DISTANCE FROM SPINDLE CENTER TO COLUMN.. 23"

TABLE SIZE.............................. 20" X 29.5"

MAX TABLE LOAD.......................... 1,540 LBS

RAPID TRAVERSE RATES (X & Y/ Z)......... 1,181 IPM

SPINDLE SPEEDS.......................... TO 8,000 RPM

SPINDLE MOTOR........................... 17.3 HP

SPINDLE TAPER........................... CAT 40

SIDE MOUNT AUTOMATIC TOOL CHANGER....... 24 POSITIONS

APPROX FLOOR SPACE REQUIRED....... 85" X 97" X 101.5" H

APPROX MACHINE WEIGHT................... 10,000 LBS

EQUIPPED WITH:

* FANUC 0i-MB SERIES 4-AXIS CNC CONTROL

* HARDINGE 4th AXIS GD 5C2 5-C ROTARY

* PORTABLE MPG

* 24 TOOL SIDE MOUNTED AUTOMATIC TOOL CHANGER

* COOLANT TANK AND CHIP PAN

* FLOOD COOLANT

* 17.3 HORSE POWER SPINDLE MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
