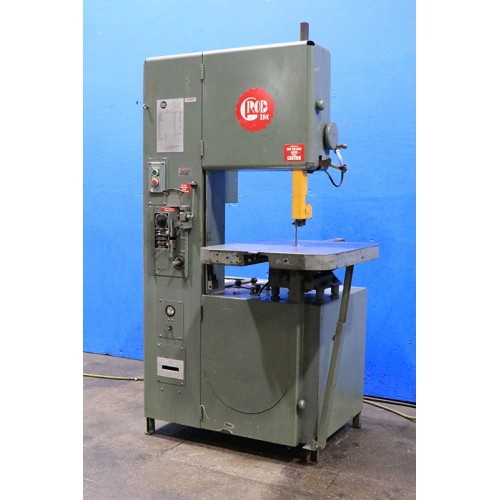

GROB 18" VERTICAL BAND SAW WITH WELDER GRINDER

AML Stock #002912

18" GROB VERTICAL BAND SAW MODEL # 4V-18

 S/N: 4634,  NEW: 1984

SPECIFICATIONS:

THROAT DEPTH ......................... 18"

CAP. UNDER GUIDE ..................... 12" CAP

BLADE SPEED, VARIABLE LO - HIGH ...... 40 TO 5,000 FPM

BLADE SIZE ........................... 1/8" - 1" THICK,146" - 150" LONG

TABLE SIZE ........................... 24" x 28" x 2-1/2" THICK

TABLE TILTS:

   DOWN LEFT ......................... 0 - 10 DEGREES

   DOWN RIGHT ........................ 0 - 45 DEGREES

TABLE FEED:

   TRAVEL ............................ 8"

   PRESSURE TO SAW ................... 0 - 300 LBS.

APPROXIMATE WEIGHT ................... 1,510 LBS

APPROXIMATE SIZE ............... 42-3/8"W x 44-3/4"D x 75"H

EQUIPPED WITH:

*TILT TABLE

*FOUR SPEED GEAR BOX, INFINITELY VARIABLE

*AIR-HYDRAULIC POWER FEED TABLE

*GROB BLADE WELDER MODEL: RWA

*3 HORSE POWER MAIN MOTOR

Call Marc @ (732) 390-0006 to inspect under power in NJ
