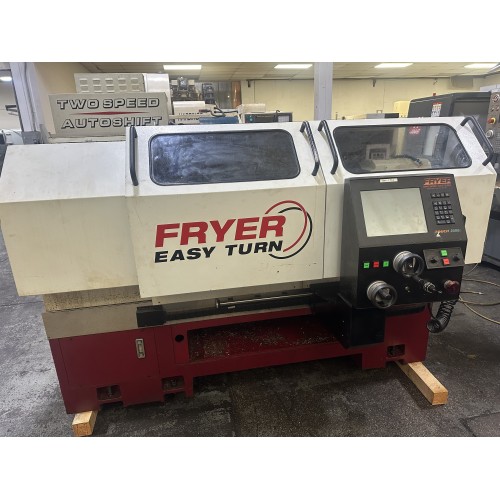

FRYER EASY TURN MODEL ET-18 CNC MANUAL COMBINATION LATHE, 18" x 40"cc, NEW 2006 VERY GOOD CONDITION FROM PHARMACEUTICAL COMPANY

AML Stock #003081

18" x 40" FRYER CNC / MANUAL COMBINATION LATHE MODEL: ET – 18

S/N: 18275,  NEW: 2008

WITH TOUCH 2000 CNC GRAPHIC CONVERSATIONAL CONTROL

SPECIFICATIONS:

SWING OVER BED ............................ 18" SWING

SWING OVER CROSS-SLIDE .................... 9.125"

DISTANCE BETWEEN CENTERS .................. 40"

CROSS SLIDE TRAVEL ........................ 10"

BED WIDTH ................................. 14"

SPINDLE NOSE (CAMLOCK) .................... D1-8 CAMLOCK

SPINDLE THROUGH HOLE ...................... 2.05

TAPER IN REDUCTION SLEEVE ................. MT # 4

INFINITELY VARIABLE THRU 2 SPEED AUTO SHIFT HEADSTOCK

SPINDLE SPEED RANGE ........................ 50 - 2,500 RPM

- LOW RANGE ................................ 50 - 350 RPM

- HIGH RANGE ............................... 350 - 2500 RPM

TAILSTOCK:

QUILL TRAVEL ............................... 5"

QUILL TAPER HOLE ........................... #5 MORSE TAPER

MACHINE DIMENSIONS ......................... 86"L X  72"W X 68"H

APPROXIMATE WEIGHT ......................... 6,500 LBS

EQUIPPED WITH:

SIEMENS-TOUCH MODEL 2000i CNC CONTROL WITH CONVERSATIONAL GRAPHICS

DIGITAL HANDWHEELS

EIGHT POSITION PROGRAMMABLE TURRET

12" 3-JAW CHUCK

FLOOD COOLANT SYSTEM W/ SLIDING FRONT GUARDS AND REAR COOLANT SPLASH GUARD

10 HORSEPOWER SPINDLE MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
