AML Stock #002980

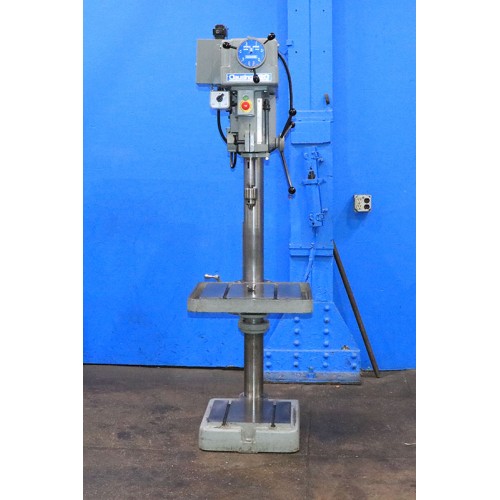

20" CLAUSING VARIABLE SPEED DRILL PRESS, MODEL 2277, S/N: 20 534633, MFG. 2000's

SPECIFICATIONS:

CAPACITY, HAND FEED ................... 1-1/4" DIA

DRILLS TO CENTER OF CIRCLE ............ 20" DIAMETER

OVERALL SIZE OF TABLE ................. 19-1/2" X 22"

WORKING SURFACE OF TABLE .............. 15-1/2" X 18"

SPINDLE TAPER ......................... #3 MORSE

SPINDLE TRAVEL ........................ 6-1/2"

MAX DISTANCE SPINDLE TO TABLE ......... 33-1/8"

MAX DISTANCE SPINDLE TO BASE .......... 43-3/8"

BASE WORKING SURFACE .................. 13" X 15-1/2"

SPINDLE SPEEDS INFINITELY VARIABLE:

  LOW RANGE ........................... 150 - 1000 RPM

  HIGH RANGE .......................... 300 - 2000 RPM

APPPROXIMATE WEIGHT ................... 640 LBS.

EQUIPPED WITH:

* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE

* T-SLOTTED TABLE & BASE

* 3/4" CAPACITY JACOBS DRILL CHUCK

* SPINDLE TWO SPEED FOWARD & REVERSE SWITCH

* 1.5 / .75 HORSE POWER TWO SPEED MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY

CONDITION:   ***  SUPERB  ***
