AML #003006

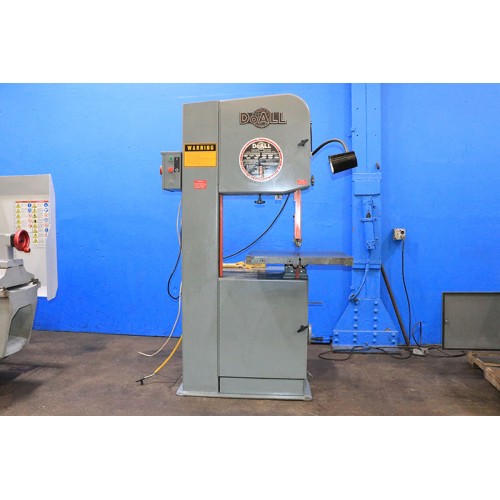

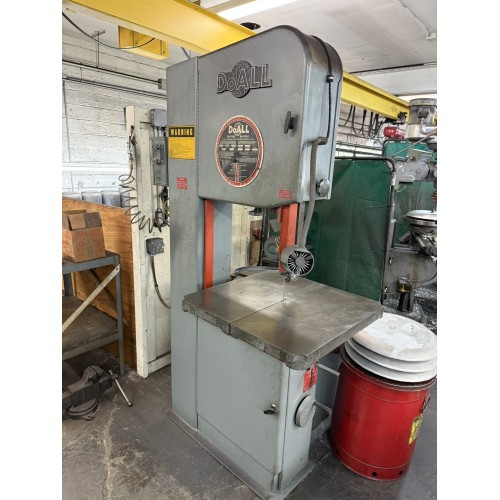

20" DOALL VERTICAL BANDSAW MODEL: 2013-V

S/N: 457-901683,   NEW: 1990

SPECIFICATIONS:

THROAT, BAND TO COLUMN ............................ 20"

MAXIMUM WORK HEIGHT ............................... 13"

BAND WIDTH CAPACITY ........................ 1/16" - 1"

SAW BAND LENGTH .................................. 154"

FILE BAND LENGTH ................................. 153"

BAND SPEED RANGE, VARIABLE TWO RANGES:

     LOW RANGE .......................... 55 TO 300 FPM

     HIGH RANGE ...................... 960 TO 5,200 FPM

TABLE SIZE .................................. 26" X 26"

TABLE TILTS ......... 45 DEGREES LEFT, 10 DEGREES RIGHT

MAXIMUM WEIGHT ON TABLE ....................... 500 LBS

APPROXIMATE MACHINE WEIGHT .................. 1,250 LBS

APPROXIMATE DIMENSIONS ....... 48-1/2" X 42" X 81-1/2"H

EQUIPPED WITH:

DUAL RANGE TRANSMISSION

TILT TABLE

2 HORSE POWER BLADE DRIVE MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
