AML Stock #003097

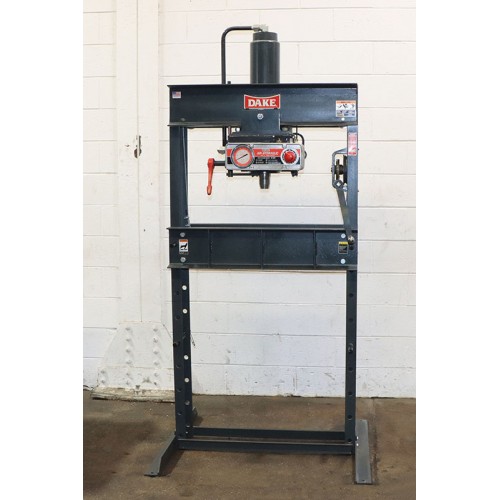

50 TON DAKE AIR-HYDRAULIC H-FRAME PRESS MODEL 906450

RATED CAPACITY ....................... 50 TONS

PULLING CAPACITY ..................... 18 TONS

WIDTH BETWEEN UPRIGHTS ............... 32-3/4"

WIDTH BETWEEN TABLE CHANNELS ......... 7-1/4"

RAM TO TABLE ......................... 5" - 40"

RAM TRAVEL ........................... 10"

INCHES PER MINUTE (ADVANCE) .......... 55

INCHES PER MINUTE (PRESSING) ......... 5

HORIZONTAL WORK TRAVEL ............... 13-1/4"

AIR PRESSURE ......................... 90-125 LBS

EQUIPPED WITH:

- MOVEABLE WORKHEAD FOR OFF-CENTER WORK

- ADJUSTABLE TABLE WITH SELF-LOCKING HOIST

- AIR OPERATION (NO HAND PUMPING)

- OVERLOAD SAFETY VALVE

- RAPID RAM APPROACH

- STROKE INDICATOR

- DUAL AIR PUMP

OVERALL DIMENSIONS: 43-1/2" X 36" X 87" H

WEIGHT: 1,150 LBS.

Call Marc @ (732) 390-0006 To Inspect Under Power In NJ
