AML Stock #003021

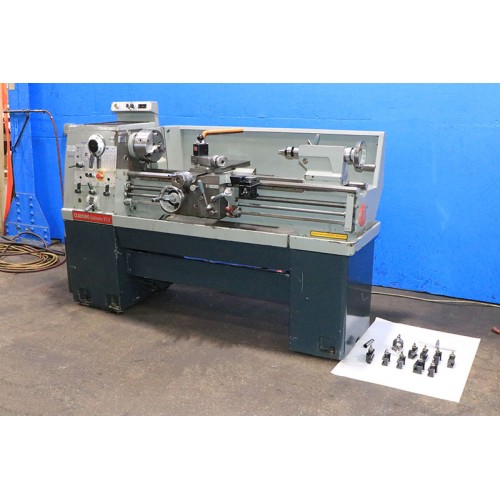

13" x 40" CLAUSING COLCHESTER ENGINE LATHE MODEL 13VS

S/N: 21/0002/00227DD, NEW: 1991

SPECIFICATIONS:

SWING OVER BEDWAYS ................... 13"

SWING OVER CROSS SLIDE ............... 8-1/4"

HOLE THRU SPINDLE .................... 1-21/32"

DISTANCE BETWEEN CENTERS ............. 40"

SPINDLE NOSE ......................... D1-4" CAMLOCK

SPINDLE SPEEDS VARIABLE THREE RANGES:

   LOW RANGE ......................... 20 - 100 RPM

   MEDIUM RANGE ...................... 90 - 540 RPM

   HIGH RANGE ........................ 500 - 3100 RPM

ENGLISH THREADING RANGE (45) ......... 2 - 72 TPI

METRIC THREADING RANGE (39) .......... .2 - 14 mm

LONGITUDINAL FEED RANGE .............. .0015" - .040" IPR

CROSS FEED RANGE ..................... .00075" - .020" IPR

TAILSTOCK SPINDLE TAPER .............. #4MT

TAILSTOCK SPINDLE TRAVEL ............. 6-1/8"

APPROX FLOOR SPACE ................... 78"L x 32"W x 49"H

APPROX WEIGHT ........................ 2,750 LBS

EQUIPPED WITH:

INCH/METRIC THREADING

TAPER TURNING ATTACHMENT

3-JAW BISON CHUCK

JACOBS DRILL CHUCK FOR TAILSTOCK

ALORIS MODEL: BXA QUICK CHANGE TOOLPOST w/HOLDERS

TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL

THREAD DIAL INDICATOR

LIVE CENTER FOR TAILSTOCL

COOLANT SYSTEM

HARDENED BED WAYS

4 HORSE POWER MAIN MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
