AML Stock #003094

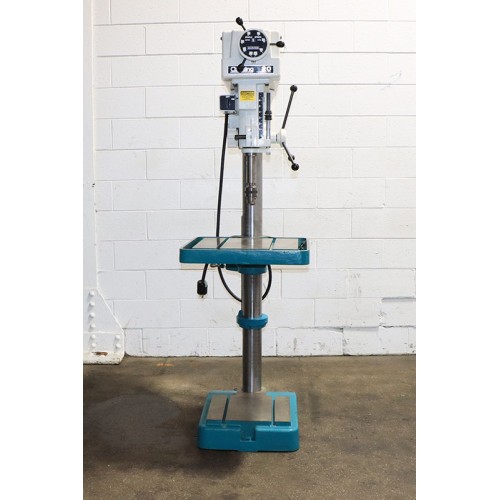

20" CLAUSING VARIABLE SPEED DRILL PRESS MODEL 2274

S/N: 2M03360, NEW: 2020

SPECIFICATIONS:

CAPACITY, HAND FEED ................... 1-1/4" DIA

DRILLS TO CENTER OF CIRCLE ............ 20" DIAMETER

OVERALL SIZE OF TABLE ................. 19-1/2" X 22"

WORKING SURFACE OF TABLE .............. 15-1/2" X 18"

SPINDLE TAPER ......................... #3 MORSE

SPINDLE TRAVEL ........................ 6-1/2"

MAX DISTANCE SPINDLE TO TABLE ......... 33-1/8"

MAX DISTANCE SPINDLE TO BASE .......... 43-3/8"

BASE WORKING SURFACE .................. 13" X 15-1/2"

SPINDLE SPEED INFINITELY VARIABLE ..... 200 - 1333

APPROXIMATE WEIGHT .................... 700 LBS.

EQUIPPED WITH:

* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE

* 1/2" CAPACITY JACOBS DRILL CHUCK

* T-SLOTTED TABLE & BASE

* 1-1/2 HORSE POWER 3/60/208-230/460 VOLT MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
