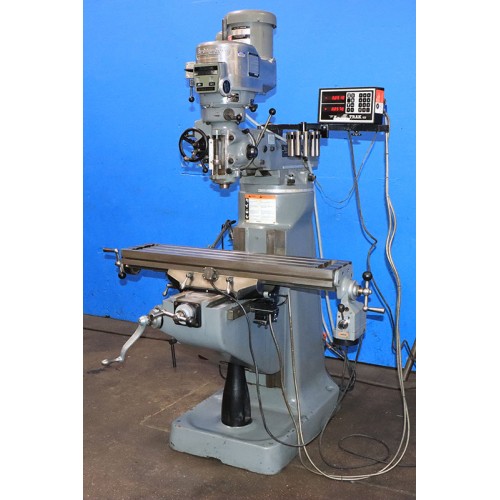

BRIDGEPORT 2 HP VERTICAL MILLING MACHINE WITH TRAK 2-AXIS DRO SERVO POWER FEED, CHROME WAYS, 9" x 42" TABLE, SUPER CONDITION

AML Stock #003022

BRIDGEPORT VERTICAL MILLING MACHINE MODEL: SERIES I

S/N: BR 258895, NEW: 1991

SPECIFICATIONS:

TABLE SIZE .............................. 9" X 42"

NUMBER OF T-SLOTS ....................... 3

LONGITUDINAL TABLE TRAVEL ............... 30"

CROSS TRAVEL ............................ 12"

QUILL TRAVEL ............................ 5"

KNEE TRAVEL ............................. 16"

RAM TRAVEL .............................. 12"

MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"

MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.

    TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"

HEAD TILT, LEFT & RIGHT ................. 90 DEGREES

HEAD TILT, FRONT & REAR ................. 45 DEGREES

INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM

SPINDLE TAPER ........................... R-8

MAX COLLET CAPACITY ..................... 3/4"

QUILL TRAVEL ............................ 5"

QUILL FEEDS ........................ 0.0015", 0.003", 0.006"

APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:

TRAK TWO AXIS DIGITAL READOUT

SERVO POWER FEED FOR LONGITUDINAL TRAVEL

CHROME WAYS

BIJUR ONE SHOT LUBRICATION SYSTEM

BRIDGEPORT SERIES I MILLING HEAD

2 HORSE POWER SPINDLE MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY

CONDITION:   *** SUPERB  ***
