AMADA HYDRAULIC CORNER NOTCHER MODEL CSHW-220 .236" x 8.66" x 8.66" CAPACITY

AML Stock #003049

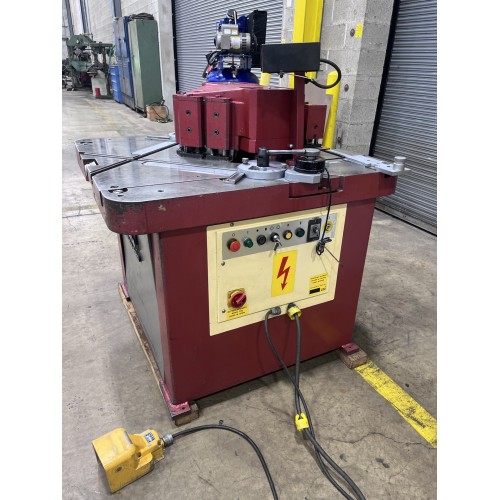

Amada Hydraulic Power Notcher, Model CSHW-220, .236” x 8.66” x 8.66” Capacity; Corner and Edge Stations

Specifications:
Maximum Thickness Capacity ........................................... .236 in (6 mm)
Corner Notching Capacity .......................................... 8.66 in x 8.66 in (220 mm x 220 mm)
Edge Notching Capacity ............................................... 1.97 in x 3.94 in (50 mm x 100 mm)
Speed - Corner Notch .......................................................... 40 spm
Speed - Edge Notch .............................................................. 42 spm
Maximum Tonnage ................................................................ 27 Ton
Hydraulic Tank Capacity ....................................................... 14.5 gallons
Approx. Weight ........................................................................ 3,530 lbs.

Main Motor…5HP, currently wired 220 Volt 3 Phase
Approx. Dimensions: 44" x 46" x 52" (l x w x h)
Equipped With:
Gauge Stops with Fine Adjustments
Easy Blade Gap Clearance Adjustment
Electric Foot Switch

Very Good Condition – Hydraulics are quiet and machine cuts well

Call Marc @ (732) 390-0006 to inspect under power in Lebanon, NJ
