AML Stock #002977

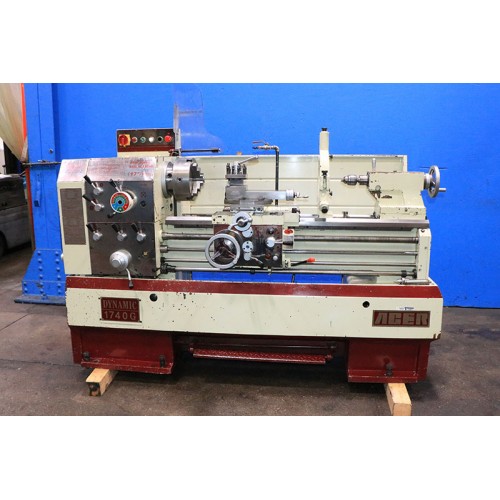

17"/26" x 40" ACER GAP BED ENGINE LATHE MODEL 1740G

S/N: 99060557, MFG: 1999

SPECIFICATIONS:

SWING OVER BED ....................... 17"

SWING IN REMOVEABLE GAP .............. 26"

SWING OVER CROSS SLIDE ............... 9-5/8"

HOLE THRU SPINDLE .................... 2-1/4"

DISTANCE BETWEEN CENTERS ............. 40"

BED WIDTH ............................ 12"

SPINDLE NOSE ......................... D1-6"CAMLOCK

SPINDLE SPEED RANGE (12) ............. 50 - 1800 RPM

LONGITUDINAL FEED RANGE .............. .002 - .028 IPR

CROSS FEED RANGE ..................... .001 - .014 IPR

ENGLISH THREADING RANGE  ............. 4 - 56 TPI

METRIC THREADING RANGE ............... .5 - 7 mm

TAILSTOCK SPINDLE TRAVEL ............. 6"

TAILSTOCK SPINDLE TAPER .............. #4MT

APPROXIMATE DIMENSIONS ............... 90"L X 40"W

APPROX WEIGHT ........................ 3,950 LBS

EQUIPPED WITH:

INCH/METRIC THREADING

9-3/4" 3-JAW CHUCK

TOOLPOST

STEADY REST

THREAD DIAL INDICATOR

3/4" JACOBS DRILL CHUCK

LIVE & DEAD CENTERS

COOLANT SYSTEM

FOOT BRAKE

HARDENED & GROUND BEDWAYS

7-1/2 HORSE POWER MAIN MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
