AML Stock #003068

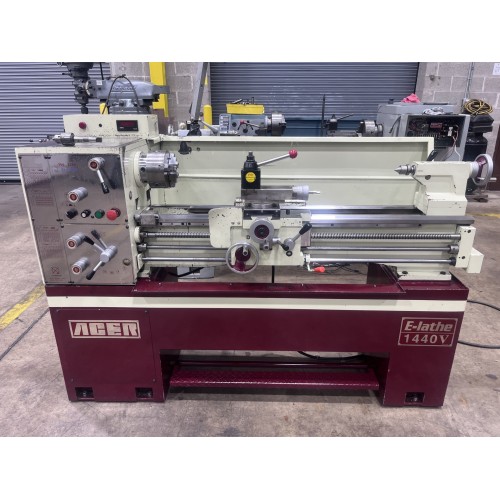

Acer 14/20” x 40” Gap Bed Engine Electronic Variable Speed Lathe, Model 1440V

S/N 3070224P, New 2003

Machine Description:

Swing over Bed 14”
Swing in Gap 20”
Swing over Cross Slide 8-3/4”
Center Distance 40”
Spindle Bore 1-1/2”
Spindle 3 HP Main Motor, 220 Volt, 3 Phase
Spindle Speeds Low 36 – 300 RPM, High 300 – 2200 RPM
Threads Inch 4-56 TPT
Threads Metric .4 – 7 MM
Feeds Long .0026” - .0318
Feeds Cross .0008 - .0122
Tail stock Taper 3 MT
Tail Stock Travel 4”
Weight 2000 Lbs

Equipped With:

6” 3 Jaw chuck

Dorian Tool Post
Live Center
Drill Chuck

Coolant with Full Length Splash Guard
Hard ways
Thread Dial
Foot Brake

Excellent Condition

Call Marc @ (732) 390-0006 to Inspect Under Power in Lebanon, NJ
