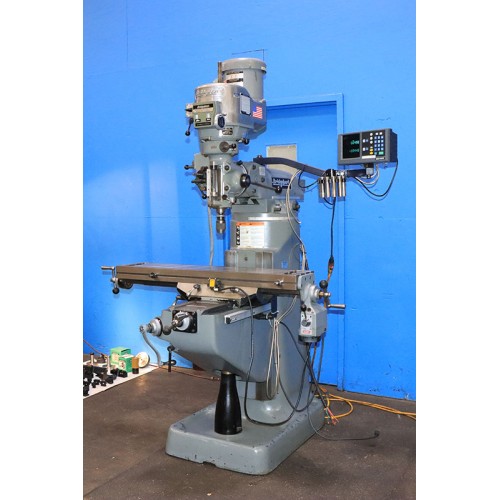

BRIDGEPORT 2 HP VARIABLE SPEED VERTICAL MILLING MACHINE MODEL 2J WITH 9" X 42" TABLE SERVO POWER FEED AND ACU-RITE DIGITAL READ OUT

AML Stock #003023

BRIDGEPORT VERTICAL MILLING MACHINE MODEL: SERIES I

S/N: BR 258183, NEW: 1991

SPECIFICATIONS:

TABLE SIZE .............................. 9" X 48"

NUMBER OF T-SLOTS ....................... 3

LONGITUDINAL TABLE TRAVEL ............... 36"

CROSS TRAVEL ............................ 12"

QUILL TRAVEL ............................ 5"

KNEE TRAVEL ............................. 16"

RAM TRAVEL .............................. 12"

MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"

MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.

    TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"

HEAD TILT, LEFT & RIGHT ................. 90 DEGREES

HEAD TILT, FRONT & REAR ................. 45 DEGREES

INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM

SPINDLE TAPER ........................... R-8

MAX COLLET CAPACITY ..................... 3/4"

QUILL TRAVEL ............................ 5"

QUILL FEEDS ........................ 0.0015", 0.003", 0.006"

APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:

ACU-RITE TWO AXIS DIGITAL READOUT

SERVO POWER FEED FOR LONGITUDINAL TRAVEL

CHROME WAYS

BIJUR ONE-SHOT LUBRICATION SYSTEM

BRIDGEPORT SERIES I MILLING HEAD

2 HORSE POWER SPINDLE MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
